Simple Site Recovery Manager set up and failover

Site Recovery Manager is a very powerful disaster recovery product which can be configured to fulfil complex failover and failback requirements but this post shows how easy it is to set up your first protected VM, Protection Group and Recovery plan and run a Planned Failover to demonstrate the fundamentals of the software. Look out for more posts in the future diving in to some of the configurable options.

Start by logging in to either the Protected or Recovery vCenter…

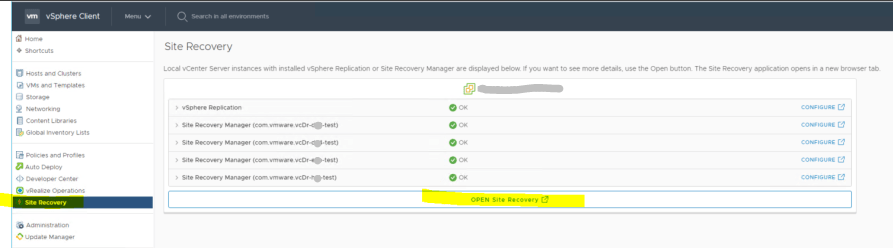

Select Site Recovery from the drop down Menu and Open Site Recovery


Log in to Site Recovery Manager

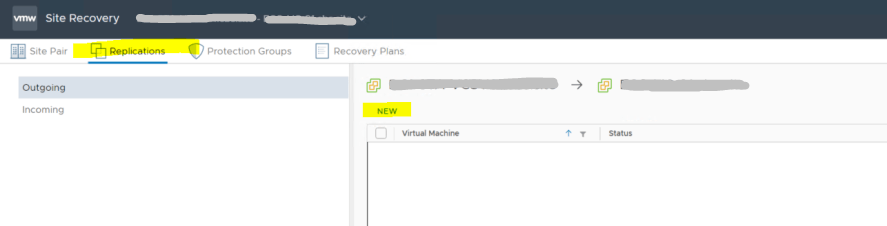

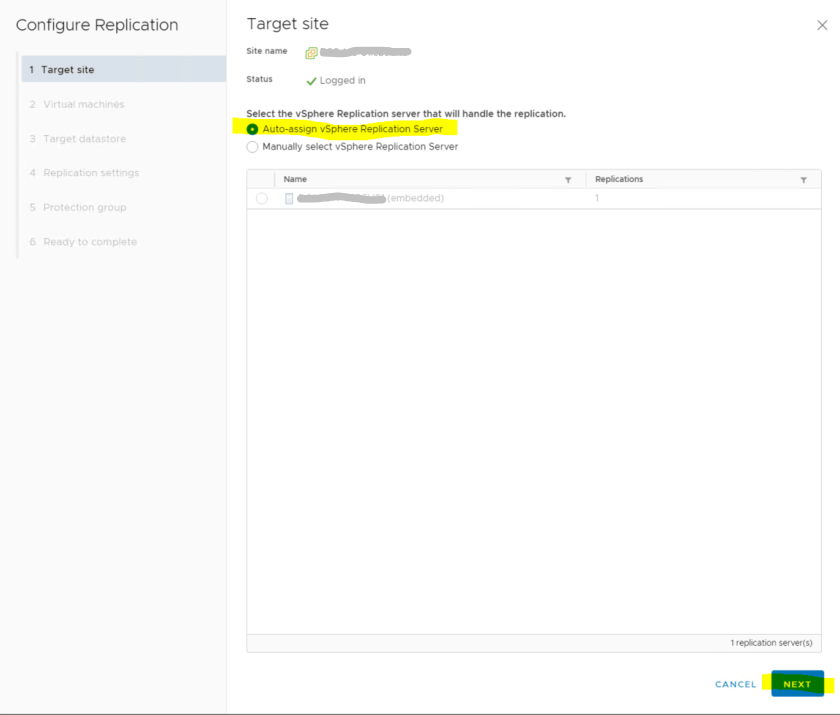

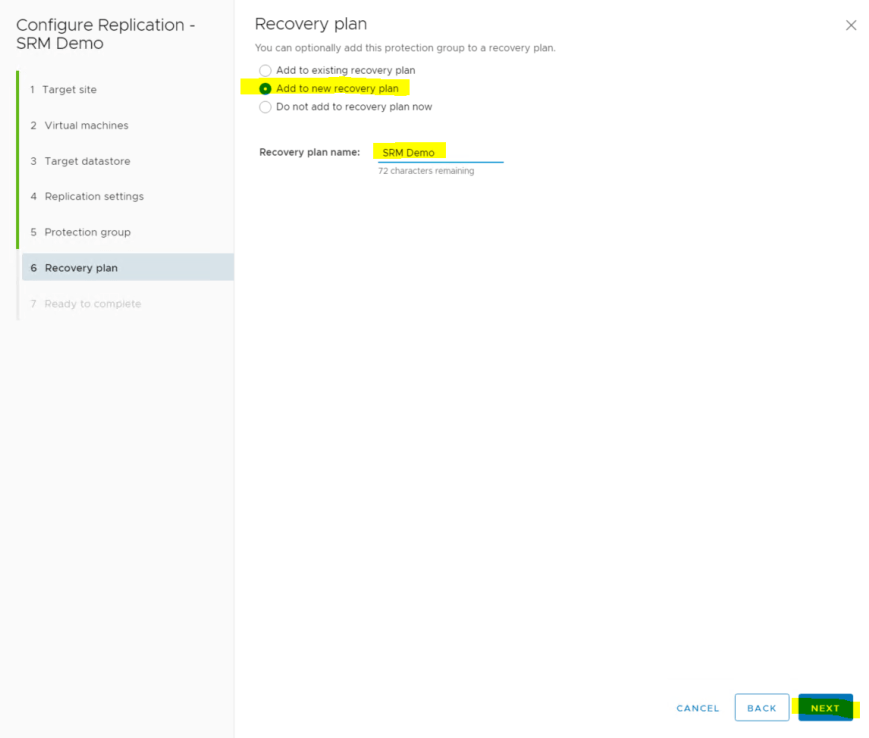

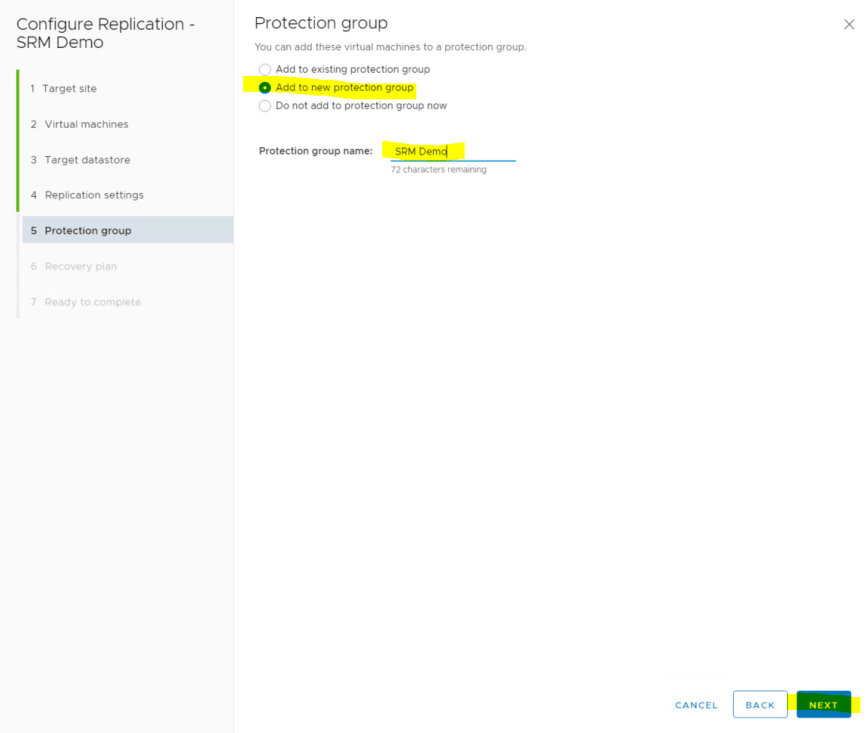

Create a new Replication, Protection Group and Recovery Plan

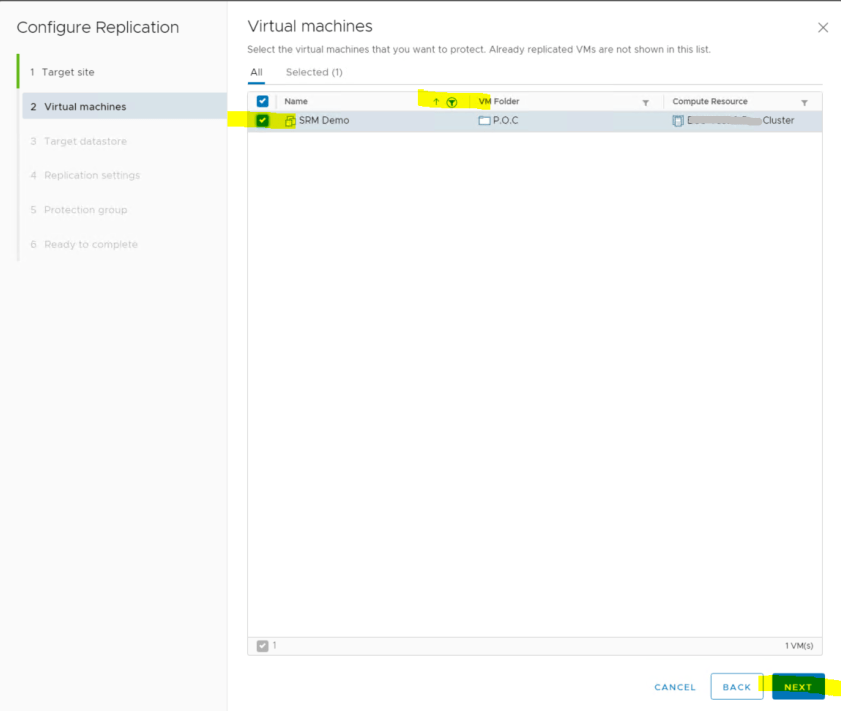

Filter for the VM that needs to be protected

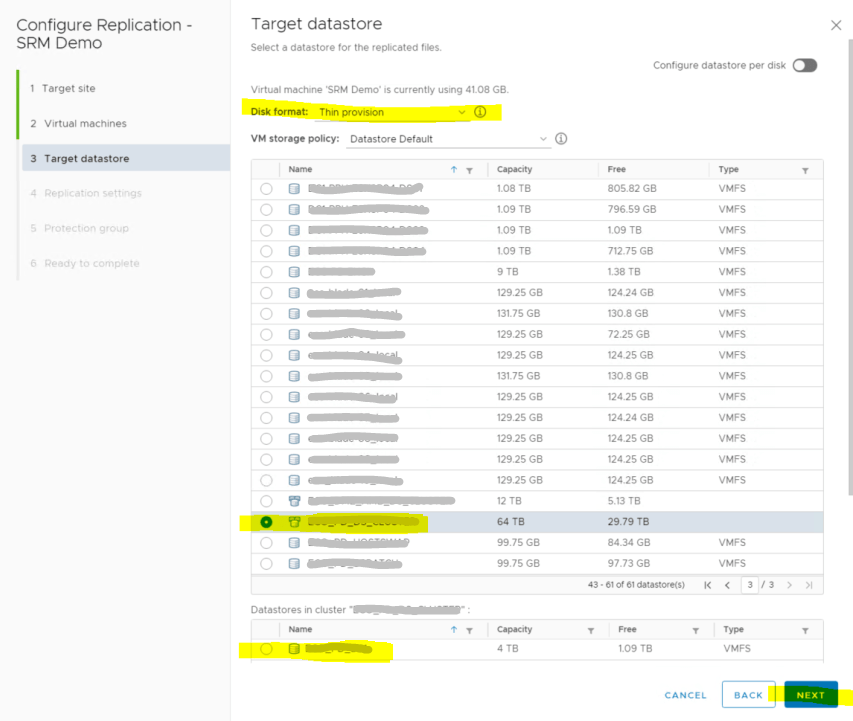

Select Datastore

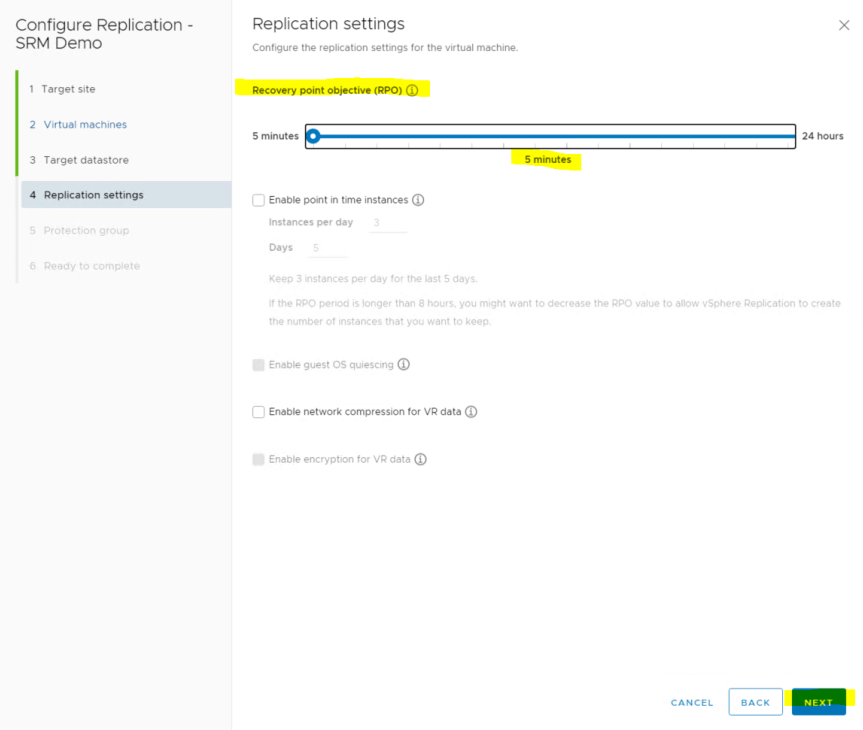

Choose RPO settings

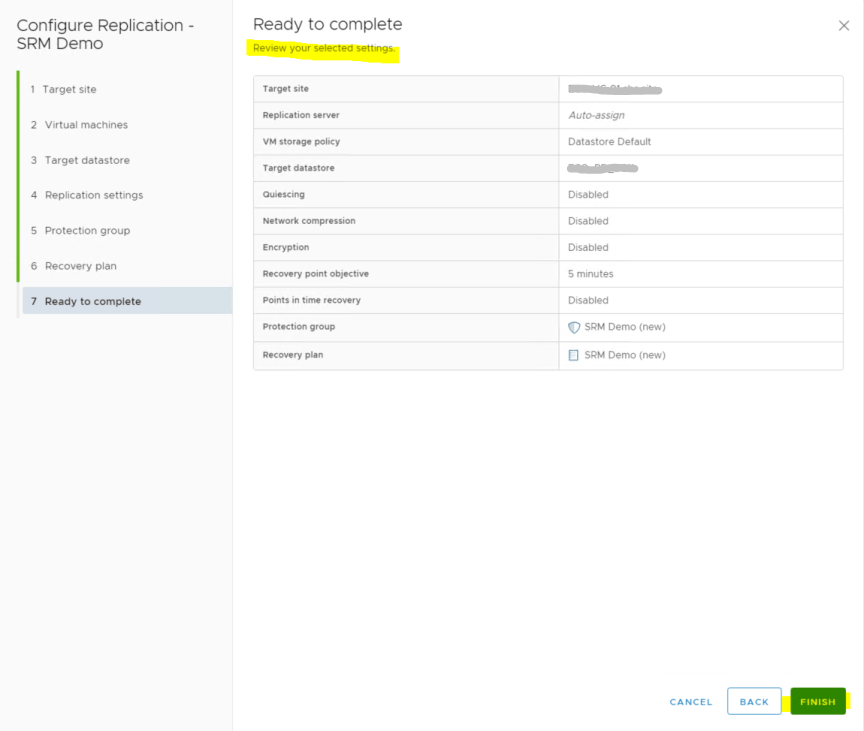

Review selected configuration

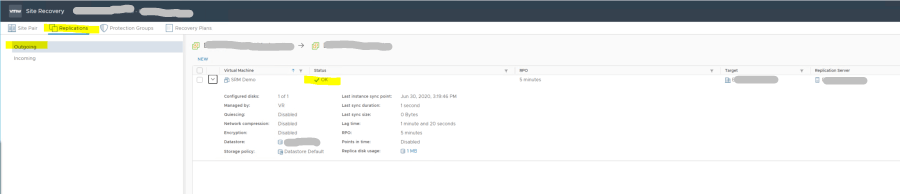

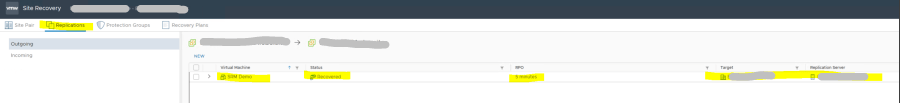

Confirm Replication is complete and status to change to OK

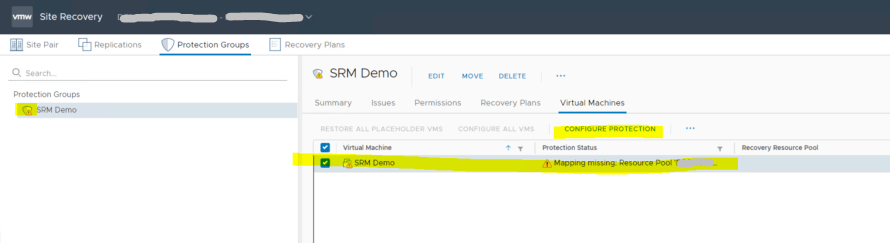

If the site environments are not identical, you may get warnings and must configure the VM for the site it will be recovered to

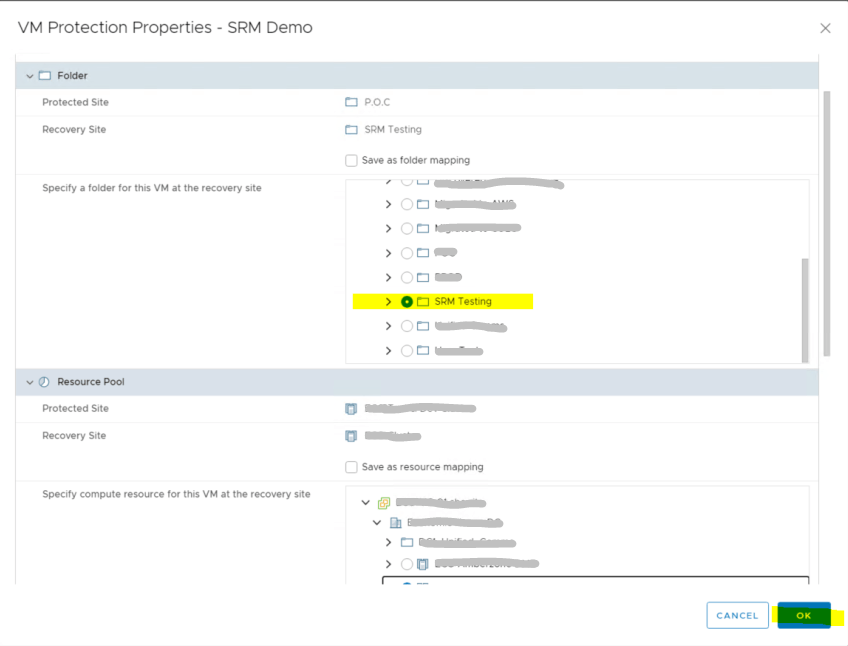

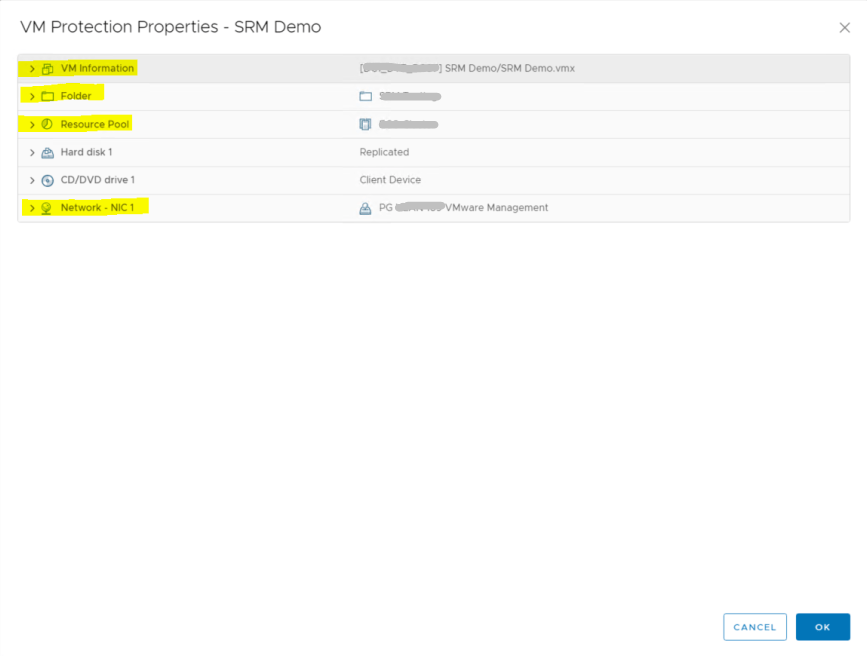

Configure all of the required settings and click OK

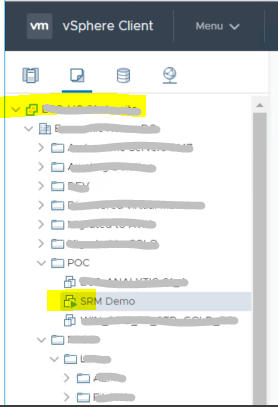

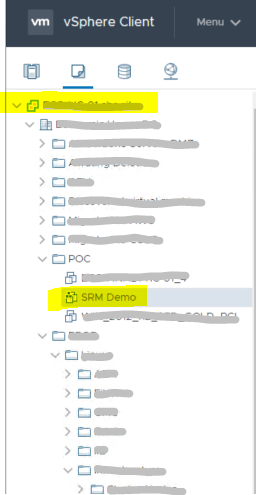

The VM placeholder is now in the Recovery Site

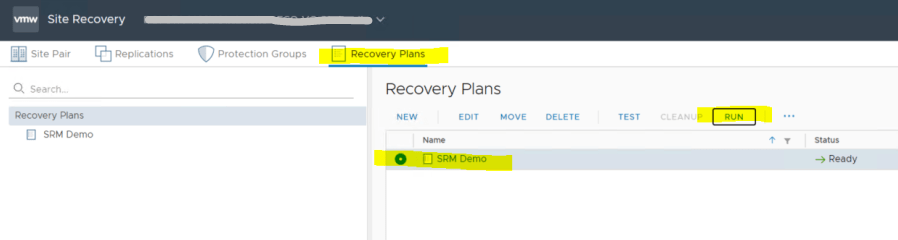

To failover, go to Recovery Plans and select Run

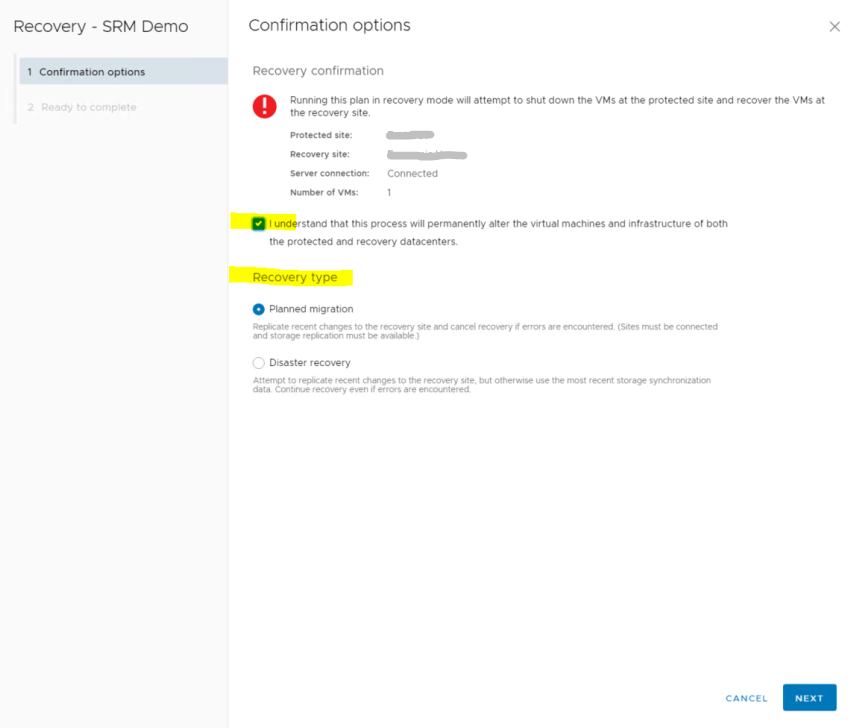

Select if this is a planned Failover or Disaster Recovery and confirm settings

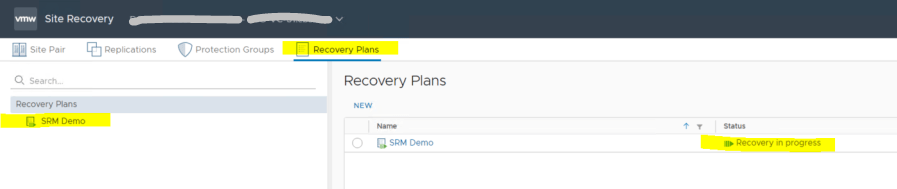

The Protected Site VM will shut down and the Recovery Site VM will power on


Failover successful
